Kaiser RB 560 AL LED Lighting Unit (5640) LED daylight lighting unit with thermo-management, consisting of two light banks for even and soft illumination.

For best reproducibility a thermo-management is necessary because light-emitting diodes also convert energy into heat, although the efficiency of LEDs is much higher than that of conventional light sources. As the temperature rises, both the brightness and the color temperature would change.

The integrated thermo-management ensures that the set brightness and color temperature always remain constant, regardless of the room and unit temperature, thus achieving reproducible results. In addition, the LEDs have a longer service life.

This thermo-management includes both sensor-controlled temperature monitoring with dynamic compensation control and elaborate passive cooling via LED board and aluminum housing.

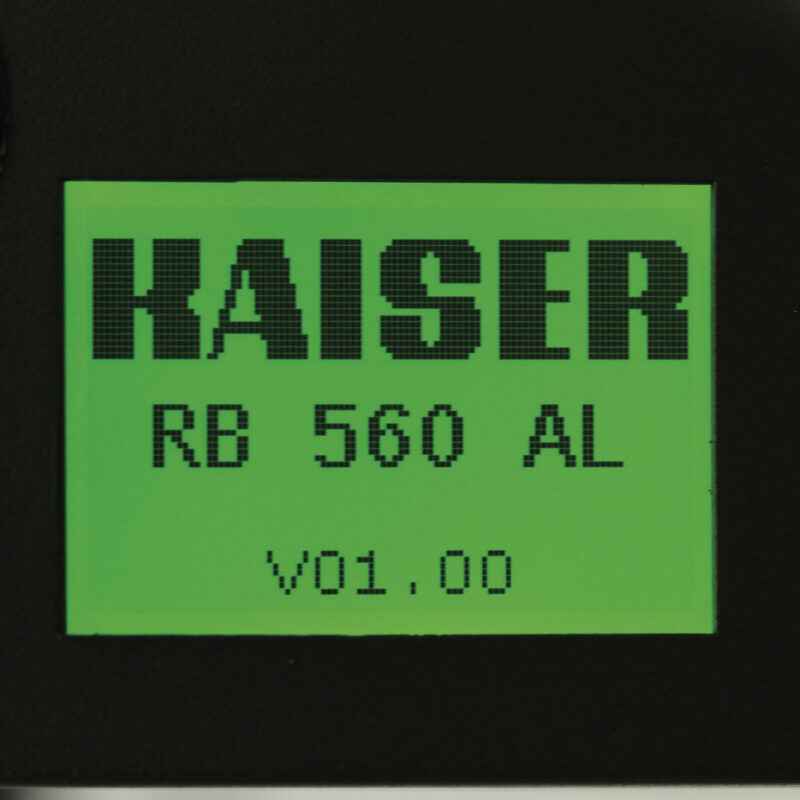

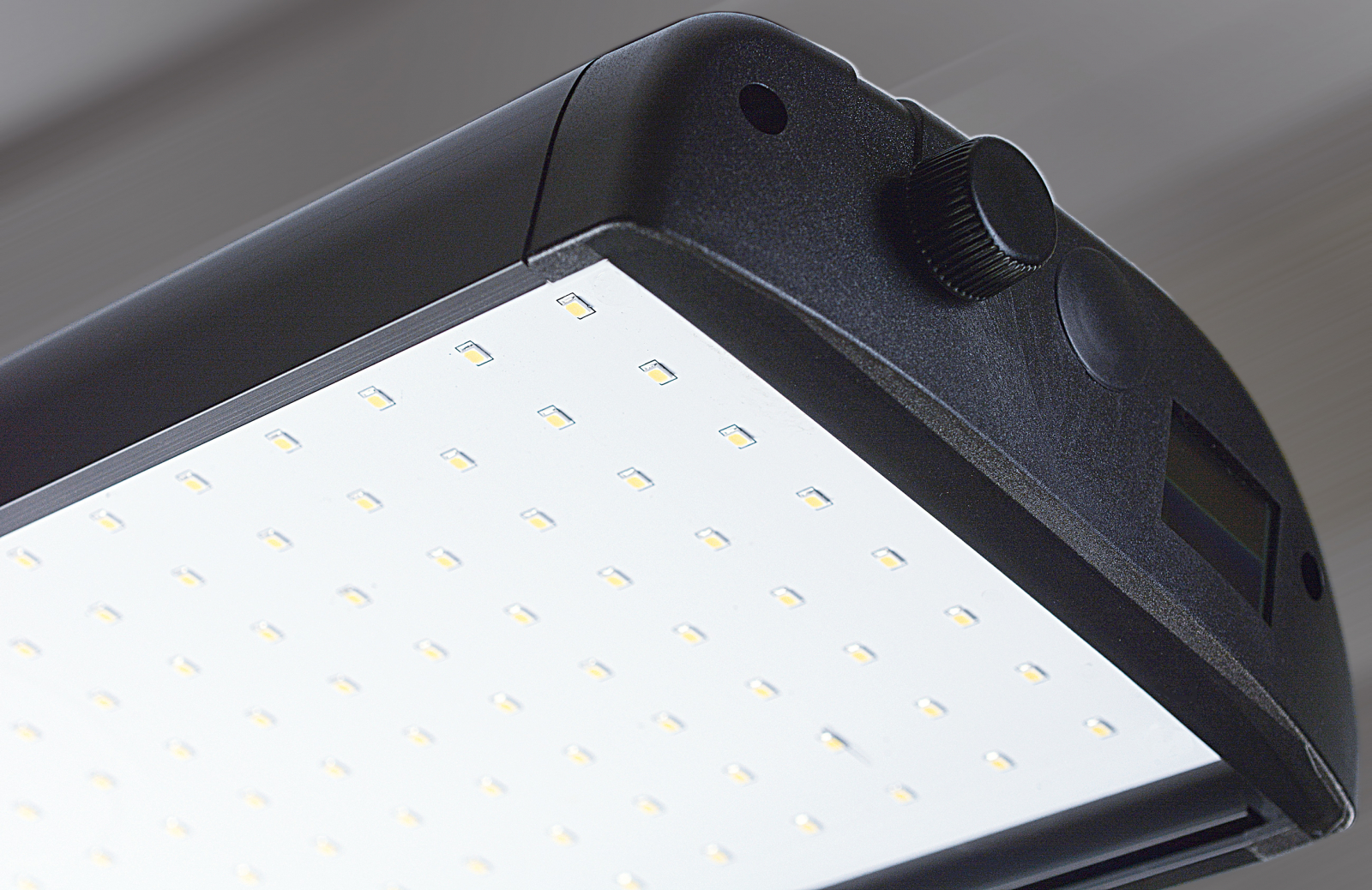

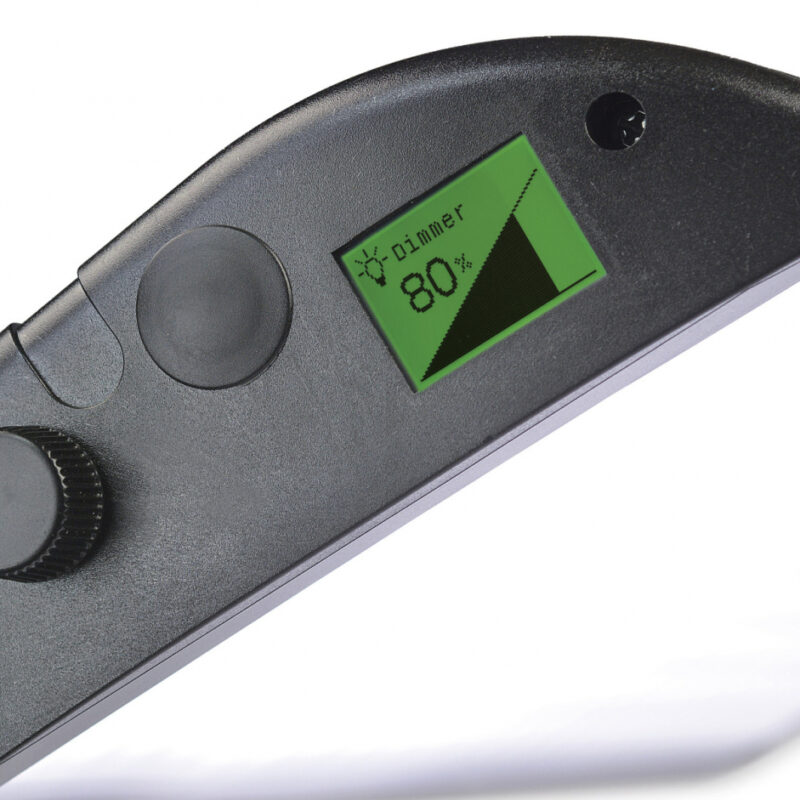

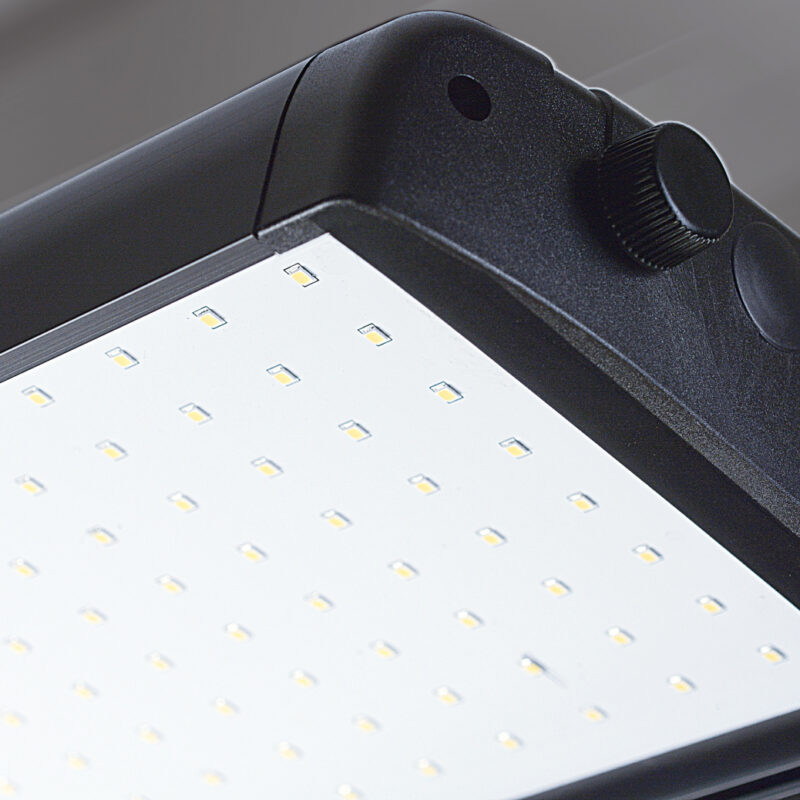

Each light equipped with 272 selected white SMD LEDs, 5600 Kelvin, CRI = 95. Emitted light has absolutely no IR and UV content, is flicker free without residual ripple. Lights can be dimmed separately or synchronously in 1 %-steps from 10 % up to 100 %. Illuminated info screen.

The light intensity of the two LED panels is matched to each other. This results in preciselyhomogeneous illumination with symmetrical alignment of the two light banks.

Memory function: The copy lighting starts with the brightness that was set before the last switch-off.

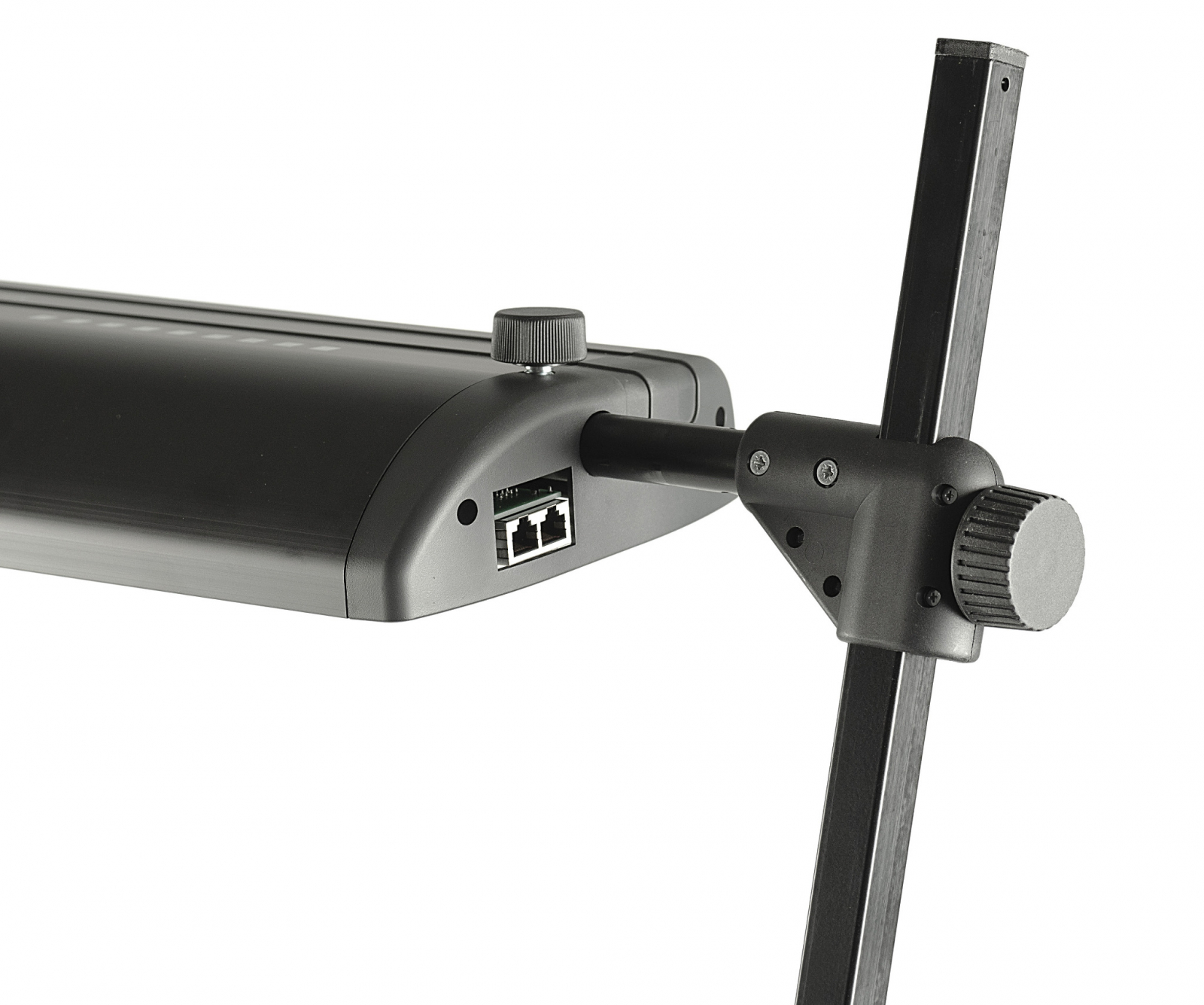

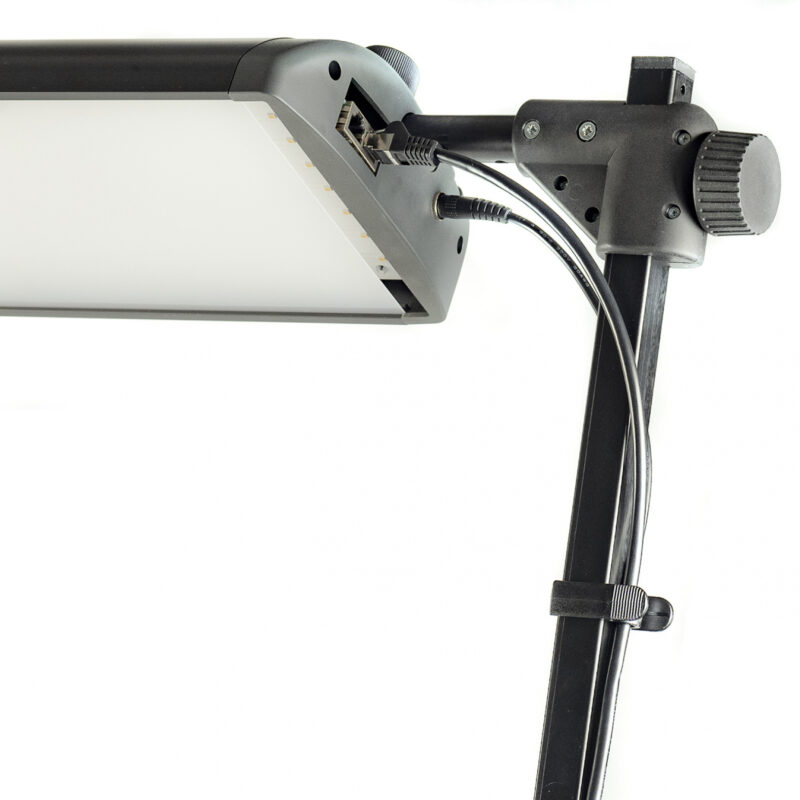

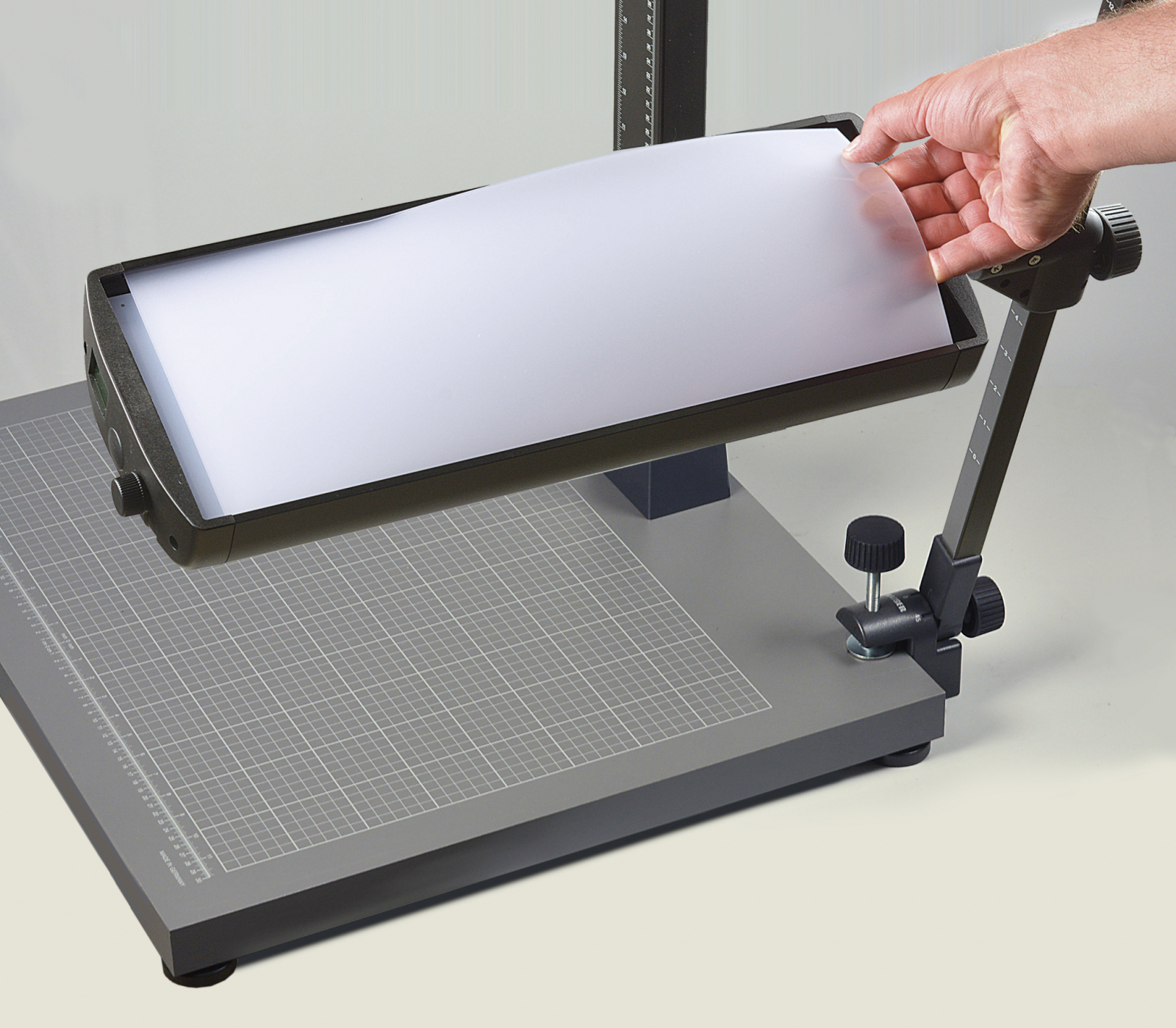

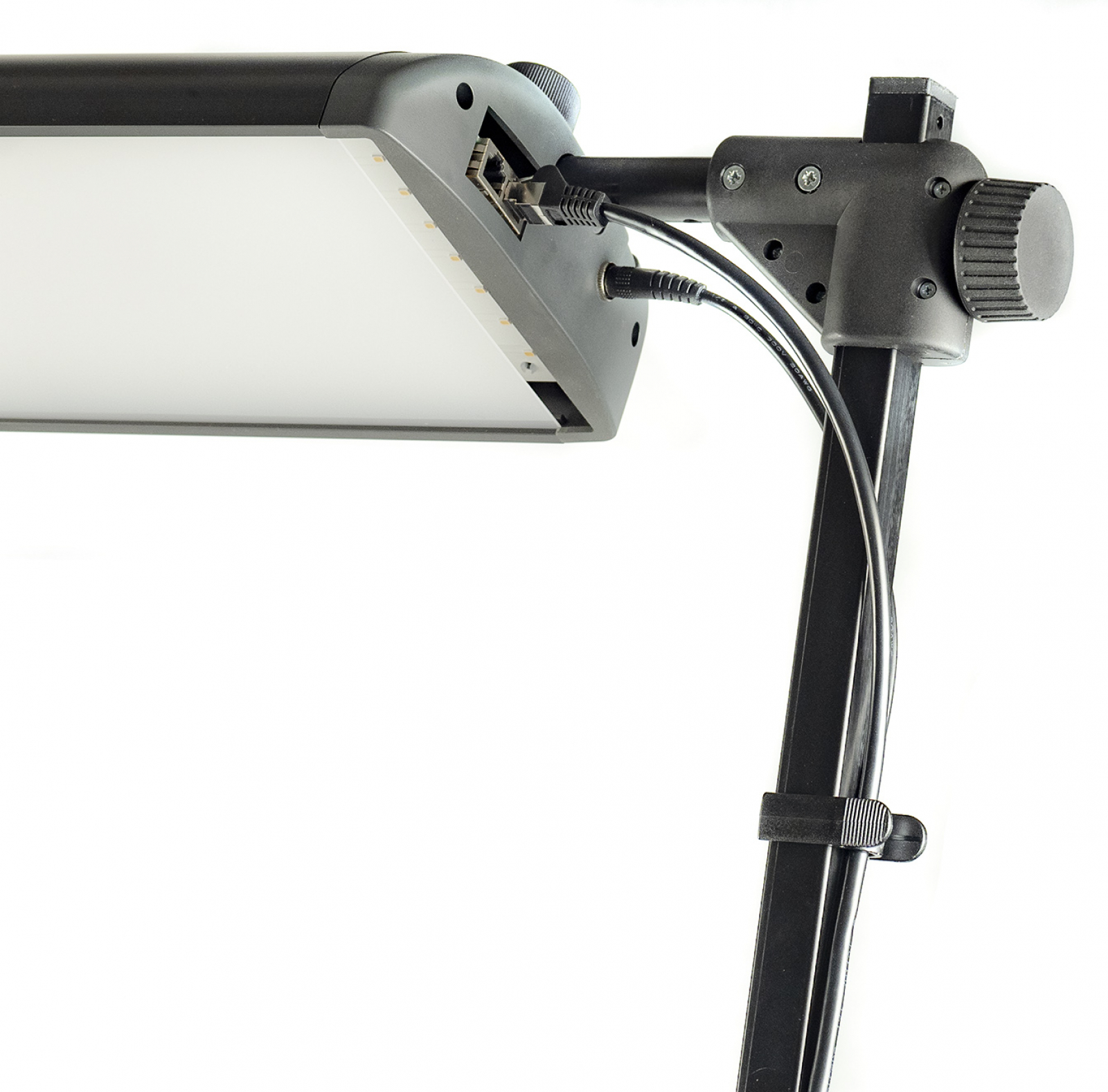

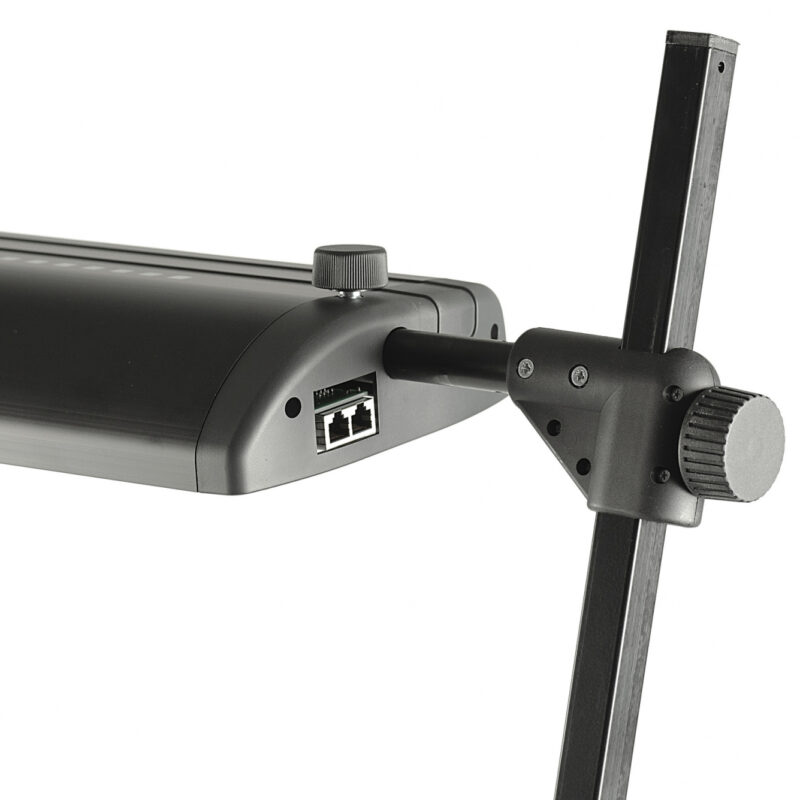

Lamp housings made of sturdy anodized aluminum section, can be swiveled, shifted and adjusted in height. Detachable soft screens. Vertical arms with height markings, tiltable with detents. Mounted with strong die-cast clamp bases, clamp width up to 48 mm (1.9 in.). Comes with mains adapter.

Lights:

• LED arrays: 2 x 272 SMD LEDs
• Color temperature: 5600 K
• Color rendition index: CRI = 95
• LED angle of radiation: 100°
• Max. illumination* with soft screen: 6800 lux
• w/o soft screen: 8000 lux

* based on uniform illumination of a 16.5 x 11.5 in. flat subject

• Power consumption: 2 x ≤ 40 W
• Operating voltage: 24 V
• Light emitting area of one light: 58 x 16.5 cm (22.8 x 6.5 in.)
• Vertical arms: 76 cm (29.9 in.) length / 20 x 20 mm (0.8 x 0.8 in.) edge dimension

Mains adapter:

• Input: 100-240 V, 50/60 Hz
• Output: 24 V, 4 A
• Mains lead: approx. 2.50 m (8.2 ft.)

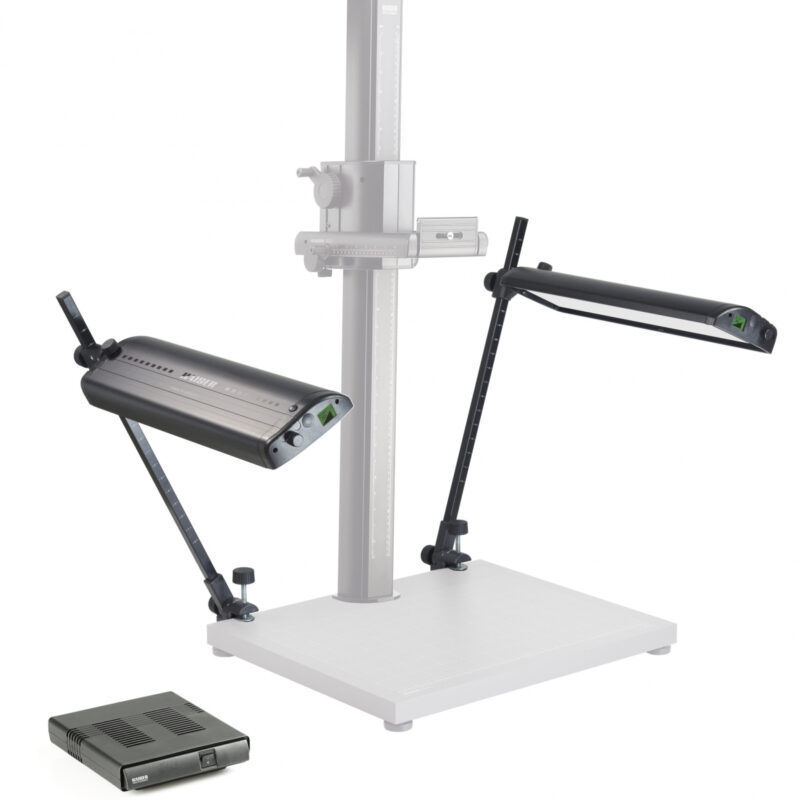

The RB 560 AL lighting unit is suitable for copy stands of the R1 System and RD system.
