Phase One iXG Camera System

Phase One iXG Camera System

From £32,370.00 Excl. VAT

The iXG delivers to the need for intelligent capture solutions built to process high volume digitisation programs with speed and accuracy. There are two options available; Transparency Kit and General Purpose Kit.

Clear
000

The iXG delivers to the need for intelligent capture solutions built to process high volume digitisation programs with speed and accuracy. There are two options available; Transparency Kit and General Purpose Kit.

Additional information

Brand

IXG Option

Transparency Kit, General Purpose Kit

iXG Camera System with PPI Assist

The iXG Camera System has been powered up with distance measuring based on an ultra-precise focusing system and refined lens profiles. In combination with Capture One CH 11.2 for Mac, this facilitates quick and easy camera setup for scanning at a specific PPI resolution, magnification or field-of-view on any copy stand.

Colour Accuracy & Superior Detail

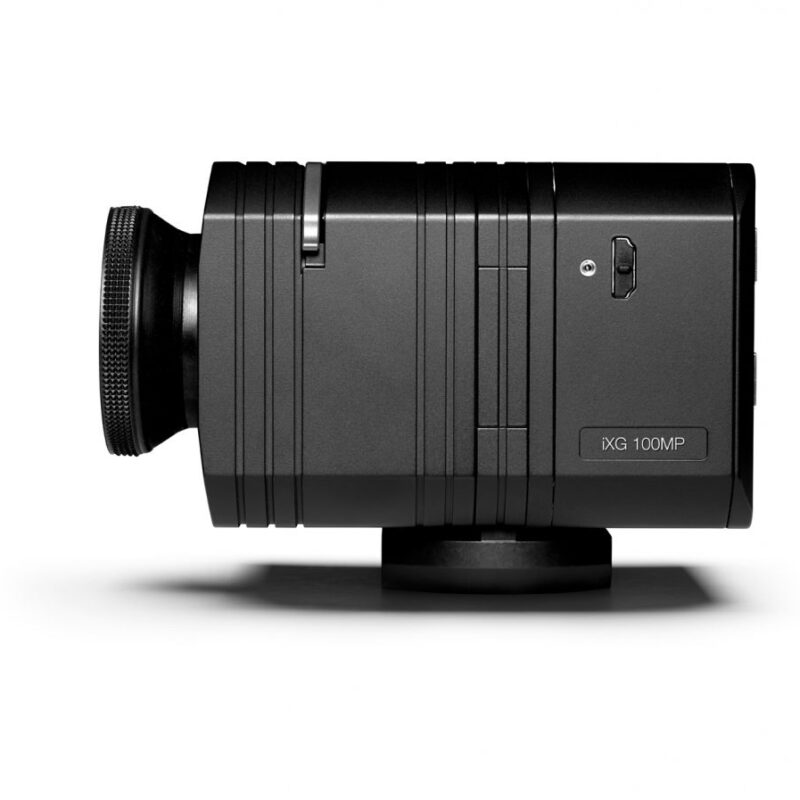

The iXG Camera System uses CMOS sensors in both the iXG 100MP and iXG 50MP models to ensure the highest resolution and lowest noise levels. These sensors produce the most accurate colors and minute details, enabling accurate reproduction for all CH cultural heritage applications. The degree of detail, quality and accuracy of color is crucial for the accurate reproduction of precious books, artworks etc. The iXG 100MP Achromatic model uses the all new Sony 100MP Achromatic sensor, combining the highest possible resolution and class leading wide spectrum sensitivity that are so desired for specialized applications such as multi-spectral and NIR (Near Infra-Red) imaging.

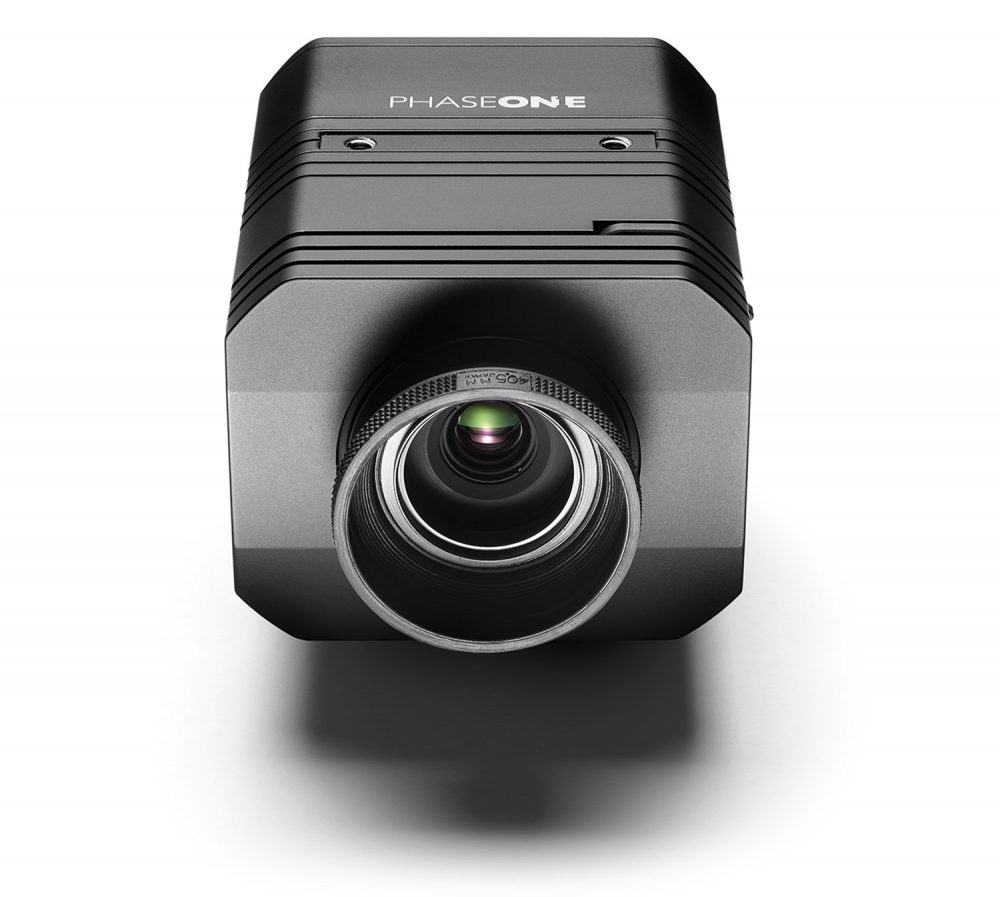

Schneider Kreuznach Optics

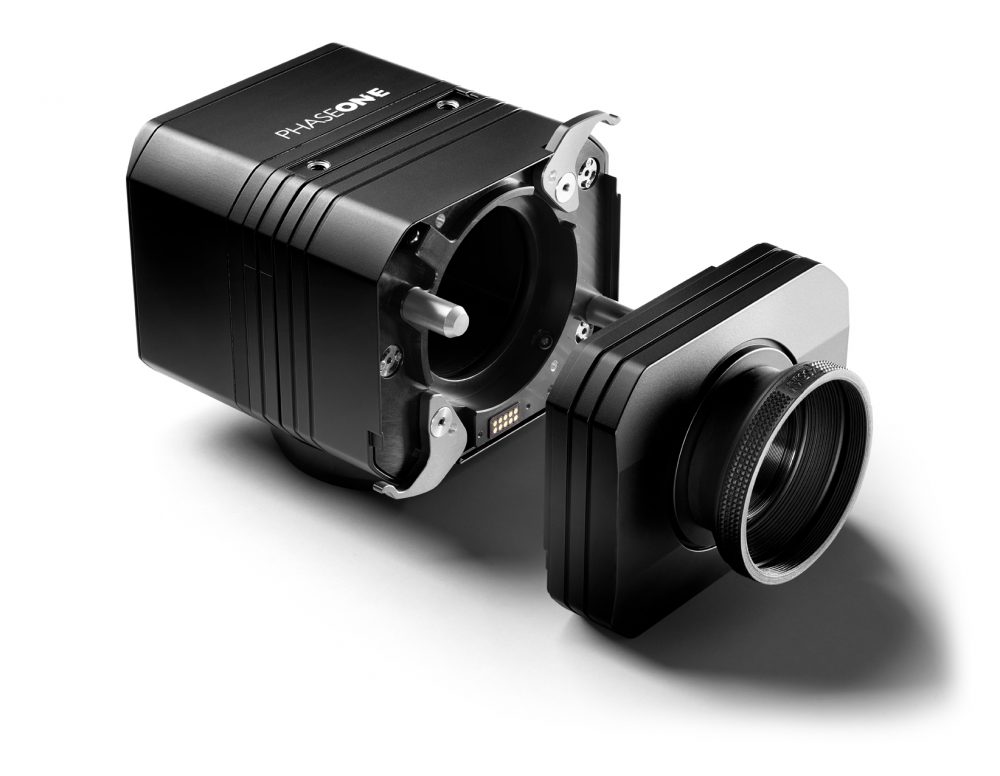

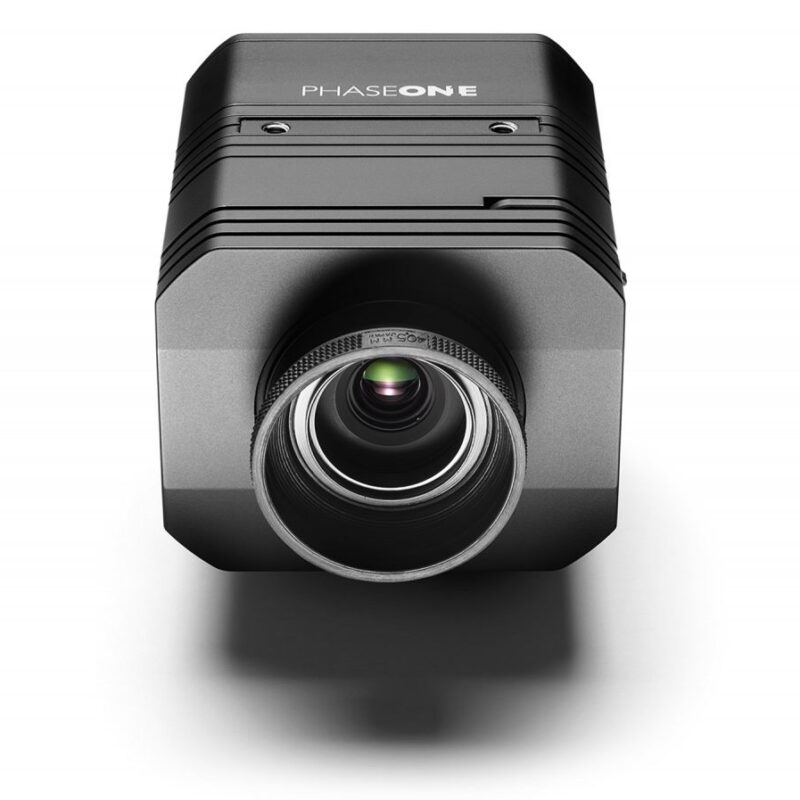

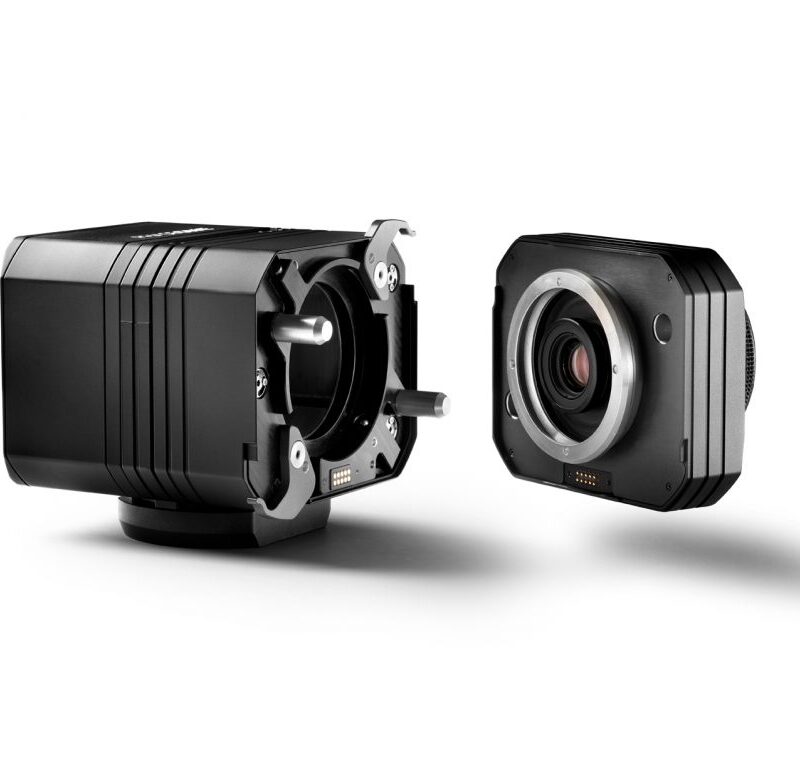

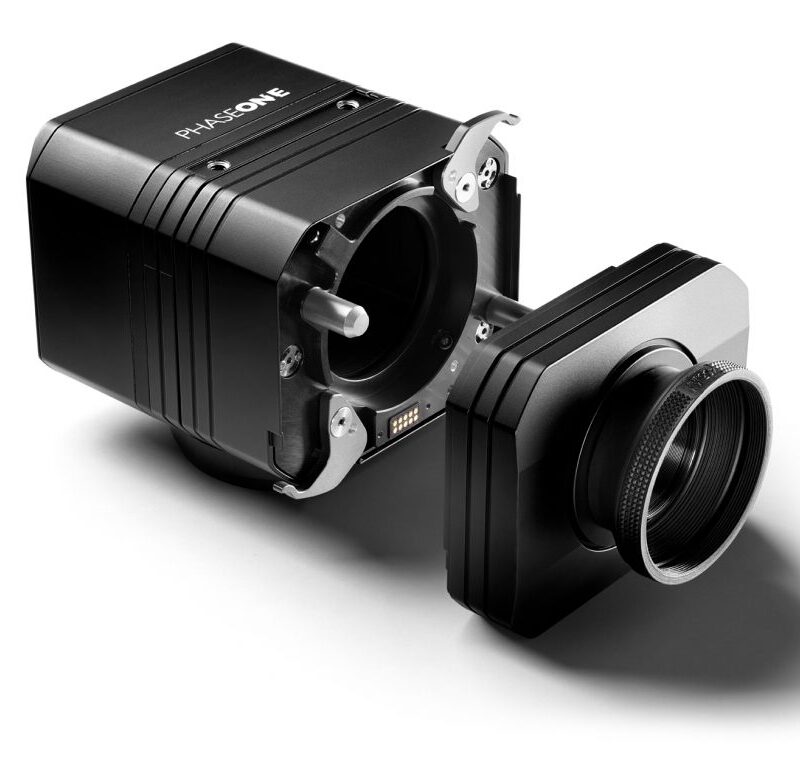

The iXG Camera utilizes integrated Flat Field Optics with the 72mm and 120mm Schneider Kreuznach lenses. This compatibility addresses the needs of flat copy work, particularly useful for libraries, archives, and universities, for example. The Schneider Kreuznach lens design in combination with the digital lens perfection of Capture One CH, offers the highest quality in terms of resolution, flatness, sharpness, distortion and color required for the most demanding reproduction applications.

Capture One CH Software Integration

The full integration of hardware with our customized Capture One Cultural Heritage software yields an efficient professional workflow and precision results. Through the software, there is complete camera control, reliable performance and expertly crafted RAW conversion algorithms. Disciplines for auto-cropping and aligning of both documents and books is a huge time saver, as is the automated workflow for scanning of negative film.

Industrial Durability

The iXG Camera System is designed to work hard and to last. It offers industrial build quality, made with aerial grade aluminum and using the most durable mechanical and electronic components available today. The Reliance Shutter’s longevity allows us to offer a guarantee of one million actuations. And with the iXG 100MP in electronic shutter mode, you can achieve an unlimited number of shutter actuations.

Precision Focus Control

With the iXG Camera System you get precise, accurate and smooth motor driven focusing. Position-recording of the lens and camera ensures optimum focus accuracy. Precision focus control with both manual and preset positioning, and contrast-based autofocus sets distance and resolution parameters accurately and reliably. This paves the way for automated setting up of camera position and focus for a specific job in terms of document size and capture resolution.

Scientific Tools

The iXG Camera System is designed to be an open platform for new accessories needed for imaging applications by both existing and new customer segments. For example, with the addition of accessory lighting and filtering, the wide spectrum, infrared, and multi-spectral capabilities of the iXG meet the highest standards required. These iXG capabilities also open the door to sequential imaging and computational imaging, required for both multi-spectral and 3D applications.

iXG Camera System Technical Specifications

Imaging sensor options – iXG 50MP, iXG 100MP and iXG 100MP Achromatic (See specification for Digital Backs)
Lens mount Phase – One iXG Shutter type – Leaf shutter, intergrated in lens (reliance shutter/RS shutter)
Shutter speed – 1/250s – 30s
Focus positions – Close range to near infinity, 23 mm max. extension
Focus control – Motorized & encoded, controlled from software
Mechanical mounts – Threaded holes at top & bottom with a dedicated L-Bracket
Triggering options – Hand release, host capture from software
Flash Output – Via Secured LEMO connector
Live View / HDMI* – 1920×1080 25p/30p, 1280 x 720 50p/60p
Data Storage – USB 3.0 Tethered to Capture One CH, PRO and DB
Dimensions (mm) – Focused to infinity: 150 x 120 x 100 / Focused to close range: 180 x 120 x 100
Weight (g) – 2300 (Including 72 mm lens and mounting bracket)
Operational temp range (c) – 10-35 (office environment)
Humidity (%) – 15-80 (office environment)
* Will be available at a later date.

Lens Specification

Designed and manufactured by Schneider Kreuznach delivering the highest quality in terms of resolution, flatness, sharpness, distortion and color required for the most demanding reproduction applications.

Lens thread diameter (mm) – 40.5 46.0
Collapsible screw-on lens shade – Included
